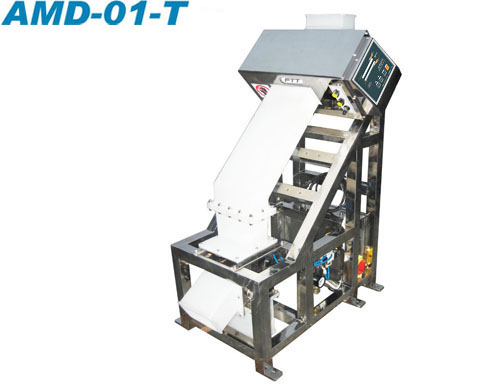

AMD-01-T金属检测机（倾斜式）

2011-04-28

                                              AMD-01-T金属检测机（倾斜式）
     全球纺织采购供应链色彩解决方案商——天友利，近几年来，越来越多的顶尖零售商和服装品牌厂家选择天友利作为自己的优选或共选色彩技术提供商。产品涉及行业：塑料、 涂料、 纺织、 汽车、 化妆品、 数码影像、 印前 、印刷、 油墨、 色觉测试、 包装等。
1. 检测对象：必须是非金属物质，它的外包装也要满足这个要求。
2. 检测目的：检测出被检物品中的金属杂质。
3. 行业范围：面粉、砂糖、化工、塑料、医药等各种添加剂产品，被检物品大多是颗粒状、粉末状或是液体状。
4. 用法：在产品包装前检测，通常装在生产管道上，并将不合格产品自动剔除。

AMD-01-T金属检测机（倾斜式）

特点：
1. 整机采用镜面不锈钢材料，干净不易粘灰。      5.输送带防跑偏处理。
2. 整机采用激光切割，制作工艺讲究。            6.检测线圈及电路元器件都采用进口元件。
3. 检测探头及电器控制箱采用防水防尘处理。      7.采用两个独立的变压器供电。
4. 管道拆卸方便，便于清洗。                    8.防震防干扰能力强。

技术参数：
检测口径 检测精度（空机） 检测速度 电压 重量 功率 外形尺寸
160×60mm Fe≥Φ0.5mm
Sus≥Φ1.2mm ≥3m3/H 220V/50Hz 100Kg 100W 700×440×1100mm
注：特殊规格可定做，外形结构如有变动，本公司保留解释权

AMD-01-T METAL DETECTOR (gradient ）
1. Detection object: Must be non-metal material,and its external package must also meet this requirement.
2. Deteciton goal: Detect the metal foreign matters in the detected material.
3. Profession scope: Various additive products such as flour,granulated sugar,chemical industry,plastics,and drugs
The detected material is mainly grainy,powdery,or liquid.
4. Usage: The detecting machine is generally installed on the production pipes befofe product packing,and the non-conformity will be removed automatically.
Characteristics:
1. The complete machine makes use of mirror plate stainless steelmaterials,so it is clean and not easy to have dusts.
2. The complete machine makes use of laser cutting,so the manufacturing process is fine.
3. The detection prode and the electrical equipment control box make use of waterproofing and dust proofing.
4. The pipeline can be disassembled and cleaned simply.
5. Anti-crooked running treatment for the conveying belt.
6. Both the detecting coil and the circuit element make use of imported components.
7. Supply power with two independent transformers.
8. Have a strong anti shock and anti interference ability.
Technical parameter:
Detection caliber Detection accuracy
(no-load machine) Dtection speed Voltage Weight Power Overall Size
160×60mm Fe≥Φ0.5mm
Sus≥Φ1.2mm ≥3m3/H 220V/50Hz 100Kg 100W 700×440×1100mm
Note:The special dimension can be customized.If the external structure changes,the company reserves the explanation right.
